Product Info

• Product Name: MF series High Flow Cartridges 3M 740 series filter elements replacement
• CAS NO.:
• Other Name: MF series Pleated High Flow Cartridges
• EINECS No.:
• Molecula Formula(MF):
• HS Code:
• Formula Weight:
• UN No.: -
• E No.:
• Appearance: White
• Solubility:
• Melting Point:
• Flash Point:
• Boiling Point:

Product Certificate

MF series 目录

Application

1. Power plant condensed water filtration 2. Chemical industry, microelectronics industry 3. R.O. pre-filtration and sea water desalination 4. Petroleum chemical industry related filtering 5. Pharmaceutical ingredients, solvents,and water filtration 6. Drinking water, edible oil, beverage,beer, milk filtration

Package & Trade Terms

Package: 4 pieces per carton

Storage Condition:

Supply Ability: 100000.00MT/Month

Trade Terms: FOB,CIF,DDP,EXW

Shipping Mode: By Sea,By Air

Shipping Port: Shenzhen,Guangzhou,Shanghai

Payment Terms: T/T,Western Union

Advantage Description

Pleated High Flow Cartridges are designed to be used in different filter housings which install 1 to 37 pieces cartridge filters.

Detailed Description

Description

Pleated High Flow Cartridges are designed to be used in different filter housings which install 1 to 37 pieces cartridge filters. Pleated high flow cartridges are made by polypropylene media, large filter area and high filtration efficiency exceed 99%. High flow cartridge filters can be used for a variety of important industrial applications for different high flow rate request. High flow pleated cartridges are used as a direct replacement to 3M 740 series elements, reduce the number of normal 2.5" OD filter cartridges save much cost and manpower, longer service life and high dirt holding capacity.





Feature

1. Easy to install and replace, save manpower and times

2. High flow pleated cartridges are high intensity and long service life

3. Wide range of chemical compatibility and suitable for a variety of fields

4. Pleated high flow cartridges are large flow rate and high dirt holding capacity

5. Direct replacement to 3M 740 series elements, longer service life and high dirt holding capacity

6. The sealing O-ring design no bypass to improve the filtering efficiency of high flow cartridge filters

Specification

Filter Media	Polypropylene Pleated
Length	20"(508mm), 40"(1016 mm), 60"(1524mm)
Outside Diameter	6 inch(152mm)
Filtration Rating	1μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm
Support/Drainage	Polypropylene (PP)
End Cap Material	Glass fiber reinforced Polypropylene (PP)
Center Core	Polypropylene
Outer Support Cage	Polypropylene
Seal Material	EPDM, Viton

Performance

Operation Date for MF Series Pleated High Flow Cartridges

Maximum Operating Temperature	80℃
Maximum Differential Pressure	3.4Bar @ 82℃
Replacement recommend pressure drop	2.4Bar @ 20℃
Suggested Maximum Flow Rate	40"(1016 mm) - 1300 LPM

Flow Rate for 40" MF Series Pleated High Flow Cartridges

Tech Support

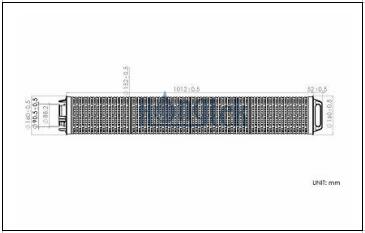

CAD Drawing for 40" MF Series Pleated High Flow Cartridges

● Inside core and outside cage ensure good performace under high pressure ● Long service life and easy to replace to3M 740 series high flow filter elements ● Pleated high flow cartridges are suitable to install for normal high flow filter housing ● Pleated cartridge save much cost and manpower, longer service life and high dirt holding capacity ● Good sealing O-ring design no bypass, high flow rate, low delta pressure & high filtration efficiency

Order Information

MF	Material	Length	Filtration Rating	End Caps	O-ring Material
MF Series Pleated High Flow Cartridges	P = PP Pleated	20 = 20"(508mm)	1 = 1μm	A = Type A End Caps	E = EPDM
			3 = 3μm
			5 = 5μm
		40 = 40"(1016mm)	10 = 10μm		V = Viton
			20 = 20μm	B = Type B End Caps
			40 = 40μm
		60 = 60"(1524mm)	70 = 70μm
			100 = 100μm

For Example:

MF-P-40-1-A-E

MF Series Pleated High Flow Cartridges - PP Pleated - 40" (1016mm) - 1μm - Type A End Caps - EPDM
