Product Info

• Product Name: HFA Series Pleated High Flow Filters Replace to Pall Ultipleat High Flow Filters
• CAS NO.:
• Other Name: HFA Series Pleated High Flow Filter Cartridges
• EINECS No.:
• Molecula Formula(MF):
• HS Code:
• Formula Weight:
• UN No.: -
• E No.:
• Appearance: White
• Solubility:
• Melting Point:
• Flash Point:
• Boiling Point:

Product Certificate

HFA series 目录

Application

1.Paints and coatings 2. Microelectronic, film and resin 3. Water treatment in Power generation 4. RO Pre filtration and sea water desalination 5. Solvents, API and water filtration in Bio field 6. Bottled water, high fructose, edible oil, soft drink and milk

Package & Trade Terms

Package: 4 pieces per carton.

Storage Condition:

Supply Ability: 100000.00MT/Month

Trade Terms: FOB,CIF,DDP,EXW

Shipping Mode: By Sea,By Air

Shipping Port: Shenzhen,Guangzhou,Shanghai

Payment Terms: T/T,Western Union

Advantage Description

The large diameter geometrical design of polypropylene pleated high flow filter cartridges enlarge surface filtration area, high dirt holding capacity to save the quantities of filter cartridges, high flow rate when filtration efficiency exceed 99%.

Detailed Description

Description

The large diameter geometrical design of polypropylene pleated high flow filter cartridges enlarge surface filtration area, high dirt holding capacity to save the quantities of filter cartridges, high flow rate when filtration efficiency exceed 99%. high flow filter cartridges are wide range of chemical compatibility and applications, the ideal option for industrial high flow water filtration system to protect RO membrane.

Feature
1. Gradient pore structure of high flow filter cartridges provide layered filter function
2. Outer hard cage can withstand higher pressure than Pall Ultipleat high flow filters made by soft netting
3. High flow filter cartridges are high filtration efficiency, lower waste disposal costs and more economical
4. Inside to outside filtration pattern of High flow filter cartridges ensure holding all impurities stay inside the pleated media
5. The highest flow rate of High flow filter cartridges could get 110 M3/H and Beta 5000 rated (99.98% efficiency)
6. The reduction of filtration system space maximum 50% and lower maintenance costs when use High flow filter cartridges
7. Materials meet FDA requirements, wide chemical compatibility, no resins, binders, or adhesives and 100% integrity testing

Specification

Filter Media	Polypropylene(PP) Pleated
Length	20"(508mm), 40"(1016mm), 60"(1524mm)
Outside Diameter	6 inch (152mm)
Inside Diameter	73.5mm
Filtration Rating	1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm
Support/Drainage	Polypropylene (PP)
End Cap Material	Glass fiber reinforced Polypropylene (PP)
Outside	Rigid Hard Cage, Stainless Steel(special)
Seal Material	EPDM, Buna-N, Viton

Performance

Operation Data for HFA Series Pall Ultipleat Replacement Pleated High Flow Filter Cartridges

Maximum Operating Temperature	180°F @ 20 psid (82°C @ 1.4 bar)
	160°F @ 30 psid (71°C @ 2.1 bar)
	77°F @ 50 psid (25°C @ 3.4 bar)
Suggested Maximum Flow Of Water	20inch length: 660 LPM
	40inch length: 1,300 LPM
	60inch length: 1,900 LPM
Liquid Flow Direction	Inside to outside
Typical Surface Area	3.5㎡ per 20" filter cartridge
	7㎡ per 40" filter cartridge
	10.5㎡ per 60" filter cartridge
Recommend Change out Differential Pressure	2.5 Bar at 20 ℃

Pressure-Drop Rate for 40" HFA Series Pall Ultipleat Replacement Pleated High Flow Filter Cartridges

Tech Support

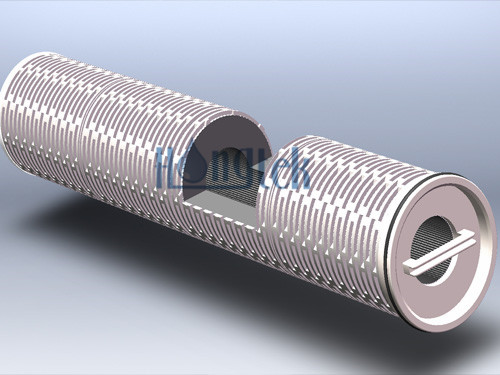

Design for High Flow Filter Cartridges
		● The 3D high-end design show the advantages of structure HF Series pleated high flow filter cartridges ● The complete design is very important to research, development and manufacture of high flow pleated cartridges ● Powerful technical team can help to customize the special pleated high flow filters to replace Pall Ultipleat high flow filters ● Pay high attention to every detail, better design to create higher quality of high flow filter cartridges for water filtration system

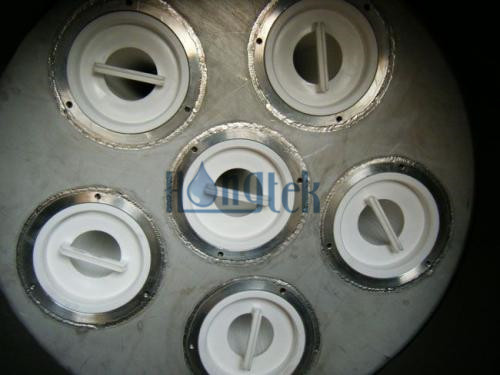

Installation for High Flow Filter Cartridges
		● Inside to outside flow pattern and no bypass ● Replace to Pall Ultipleat high flow filter directly ● Outside hard cage to make stable structure and reliably good sealing ● High flow rate & low delta pressure, absolute rated filters are designed ● Smaller and more economical filter systems, lower maintenance and waste disposal cost
